Construction laser self-levelling uniLASER AHV

• Accoustic and optical receiving signal
• LCD display at the front side for easy and practical handling

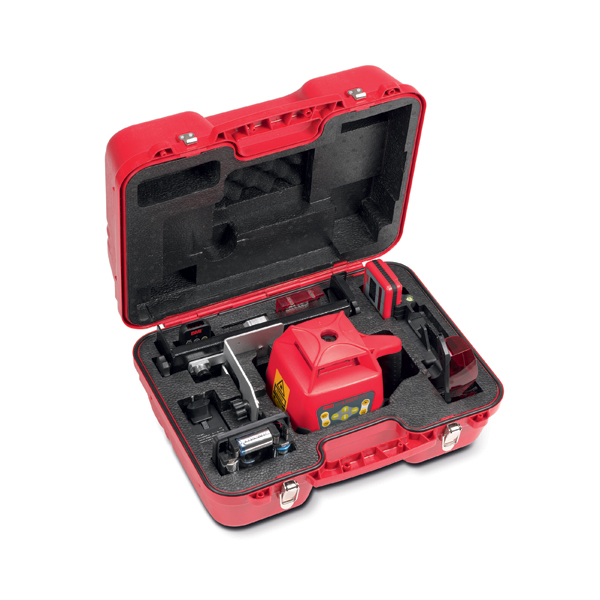

The complete Set in a stable plastic storage and transport case:

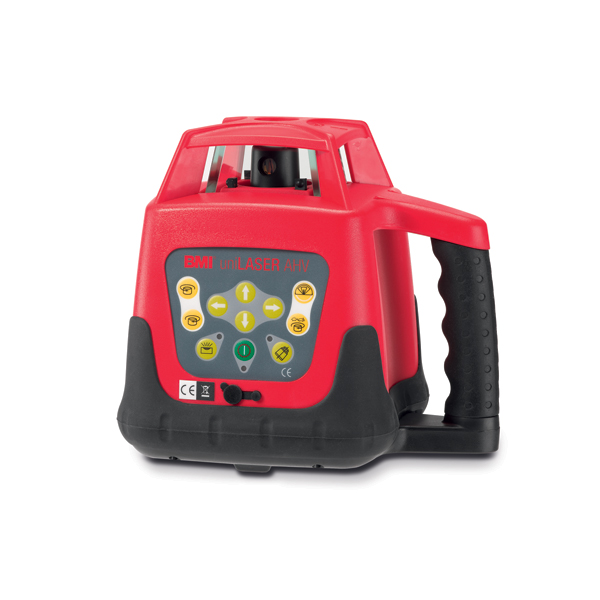

• BMI Unilaser AHV Rotating laser

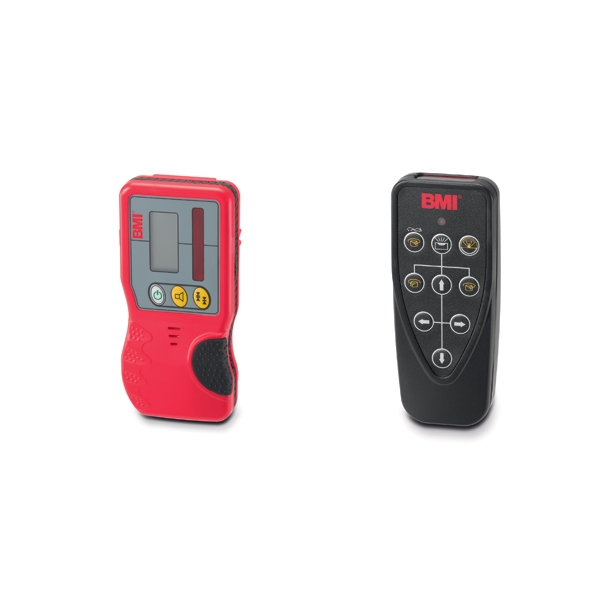

• Receiver with staff clamp
• Remote control
• charging set
• replacement batteries (4 x 1,5 V Type LR14)
• target, wall bracket
• Robust transport case
• operating manual

Technical Data Rotationslaser:

• Type of laser red diode laser, wave length 635 nm
• Output < 1 mW, Laserclass 2
• Self-levelling range ± 5°
• Levelling accuracy ± 3 mm/30 m
• Levelling time typical < 20 sec.
• Operating range -20° C to 50° C
• Range 300 m Ø with receiver
• Speed 60, 120, 300 and 600 rotations/min.
• Power supply Batterypack with 4x1,5V Type LR 14
• Service life 20 hrs
• Protective system Dust and waterproof IP 64 compliant
• Tripod connection size 5/8“
• Dimensions ca. 200 x 160 x 190 mm
• Weight 2,2 kg

Technical Data Receiver:

• Range 150 m
• Power supply 9 V-Block 6LR61
• Service life according to usage
