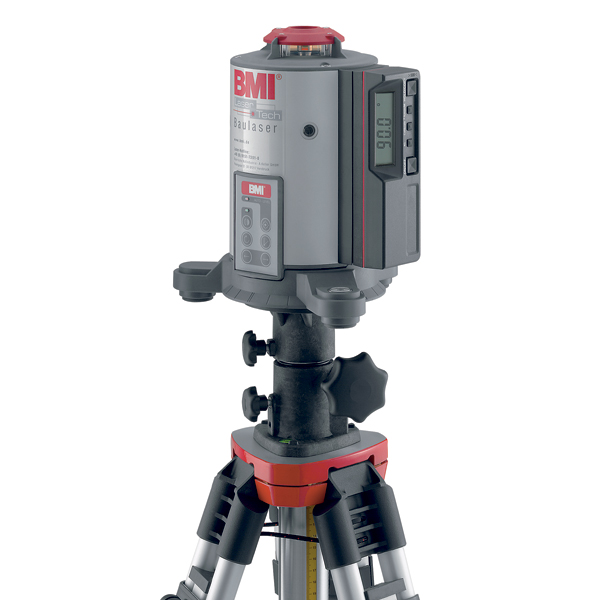

Construction Laser self-levelling topoMAT IPX5

Needs no more than one person to take care of levelling jobs!

• Efficient, automatic and safe in all situations.
• A universal levelling system for various jobs.
• rainproof/ horizontal/ vertical/ remote control

Precision and safety:

• As a result of the automatic self-levelling function with an accuracy of ± 2,6 mm/30 m
• Automatic laserstop function in case of impact or other changes of position.

Laser operating modes:

• Rotation – with 600, 300 and 100 rotations per minute – to choose the optimum task-suited rotation speed!
• Line-mode – with settings of 15, 30, or 45 degrees – to create visible laser lines or different lengths especially inside buildings!
• Dot-line mode – to the right or left – optional for the slow or fast retracing of laser dots or laser lines – function can be enabled directly at the laser or via remote control!
• Permanent angle through the firmly connected beam splitting prism.

Automatic self-levelling:

• Requires only rough setting with the help of the built-in bulls-eye vial

Photodiode hand receiver to ensure optimum functioning of the laser within a working range up to a distance of 250 m

• Accoustic and optical receiving signal
• LCD display at the front side for easy and practical handling

 Electronic Safety Program

Rainproof IP55 compliant

 Waterproof IP67 compliant

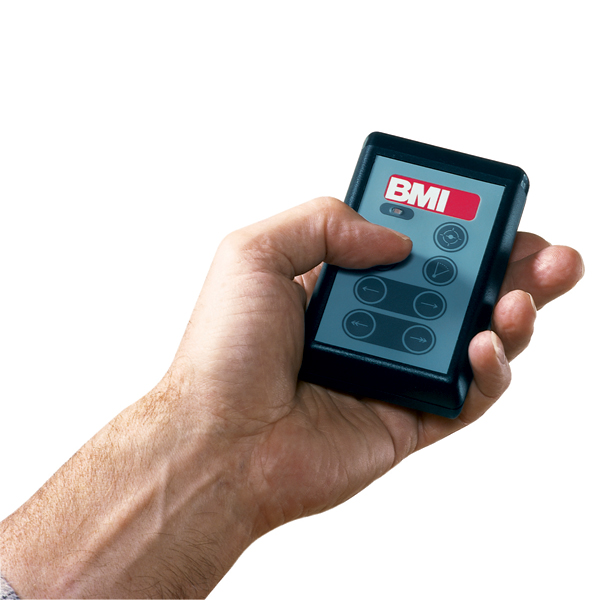

Far-reaching infra-red remote control for every laser operating moden

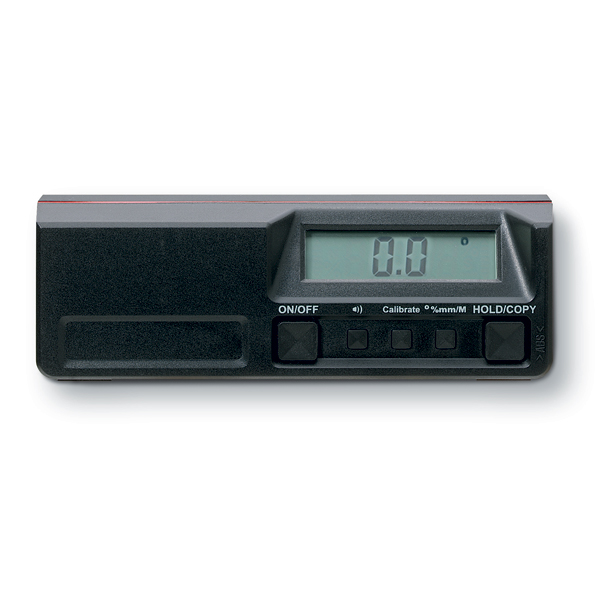

• The electronic inclination measure allows fast measuring of inclinations between 0 and 90 degrees.
• The angle measure is detachable and can be used solo.
• The topoMAT is also available without the inclinometer.

No time-consuming modification:

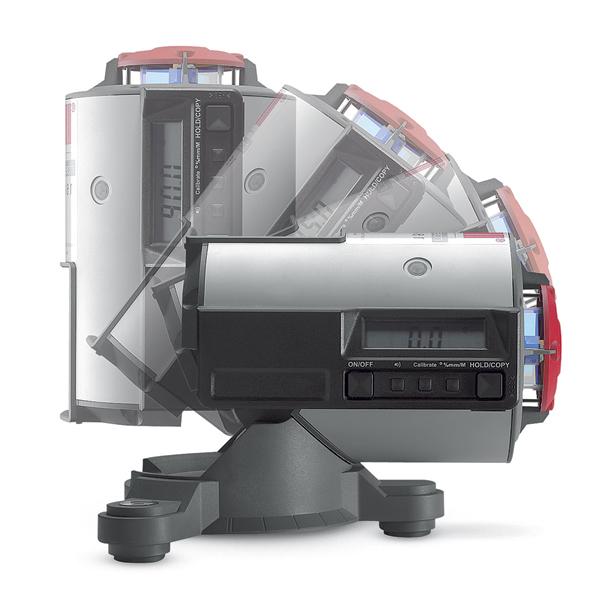

• Fast variable changing from horizontal to vertical operation with lockable 90° tilting joint

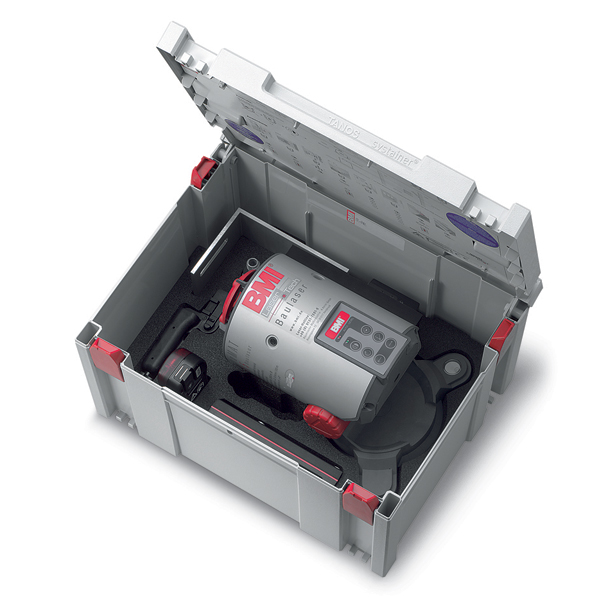

Complete laser set comes in robust storage and transport case:

• Rotating laser topoMAT IPX5
• Electronic inclinometer
• Remote control
• Hand receiver
• Wall bracket
• Clamp for telescopic levelling staff
• Diagrammed operating manual
• Batteries are included in the scope of delivery

Technical Data topoMAT ipx5:

•  Type of laser Red diode laser, wavelength 635 mm
• Output < 1mW, Laser class 2
• Self-levelling range approx . ± 4° corresponds to approx. ± 6%
• Levelling accuracy ± 2,6 mm/30 m
• Levelling time typically < 30 sec.
• Laser range 500 m diameter with detector
• Speed 600/300/100 rotations per min
• Lines Scanning function with 15°, 30° and 45° spreading
• Remote control. dot/line slow and fast left/right
• Power supply 3 x 1,5 Volt Mono LR 20
• Operating period approx. 70 hours
• Operating period IP55, rainproof
• Tripod connection size 5/8 inch (surveyor’s tripod)
• Weight 2,3 kg
• Dimensions approx. 200 x 200 x 250 mm

Technical Data Remote Control:

• Range up to 50 m depending on position in direction of receiver lens
• Power supply 9 V block 6 LR61
• Operating period depending on the degree of utilization

Technical Data Receiver:

• Range approx. 250 m
• Degree of protection IP67, waterproof
• Power supply 2 x 1,5 Volt Mignon AA LR6
• Operating period depending on the degree of utilization
