Home E-shop Measuring Instruments LASER Technology Construction Laser NAUTILUS IPX7

Product Code: 648 03 AH SET

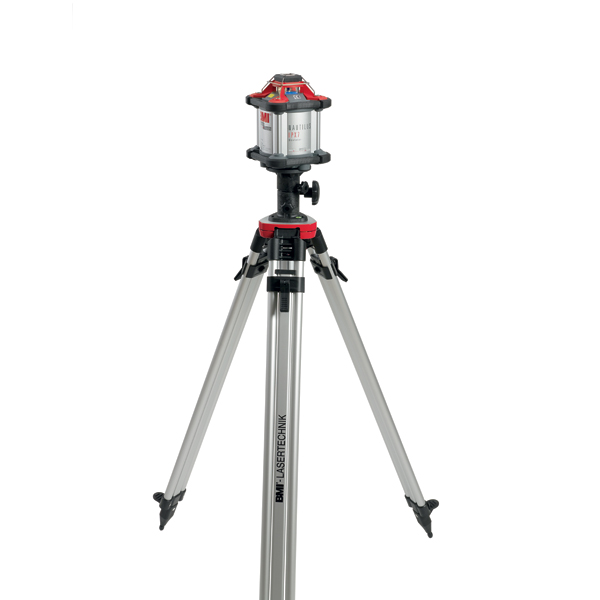

Construction Laser NAUTILUS IPX7

BMI

Price ex VAT / inc. VAT

1 076,97 € ex VAT | 1 292,36 € inc. VAT

Product availability: within 24 hours

Tags: Construction Laser

Product Description Technical parameters

Does not know what ”bad weather“ means

waterproof
horizontal
Use it under severe conditions on the construction site
Set it up, switch it on and begin (single-button-control)
Robust, accurate and safe by means of ESP (Electronic Safety Program)
Line-powered or accumulator

Electronic Safety Program: automatic laser stop in case of shocks or changes in position

With rechargeable battery (Ni-MH; without memory effect)

Waterproof IP67 compliant

Receiver Waterproof IP67 compliant

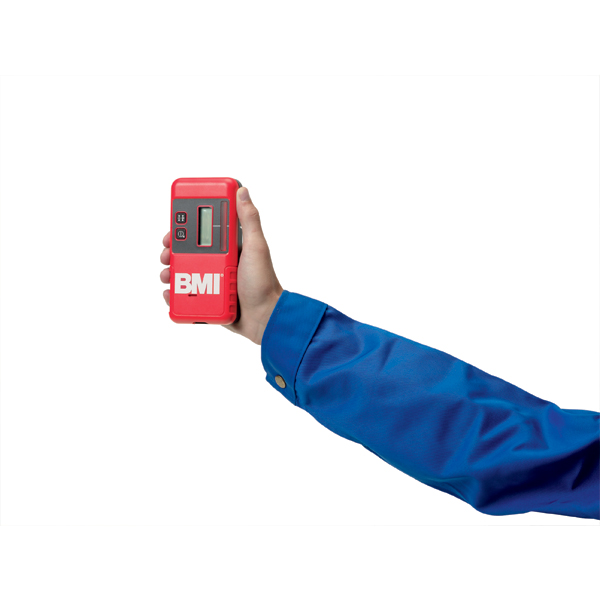

Photodiode hand receiver to ensure optimum functioning of the laser within a working range up to a distance of 250 m

Accoustic and optical receiving signal
LCD display at the front side for easy and practical handling

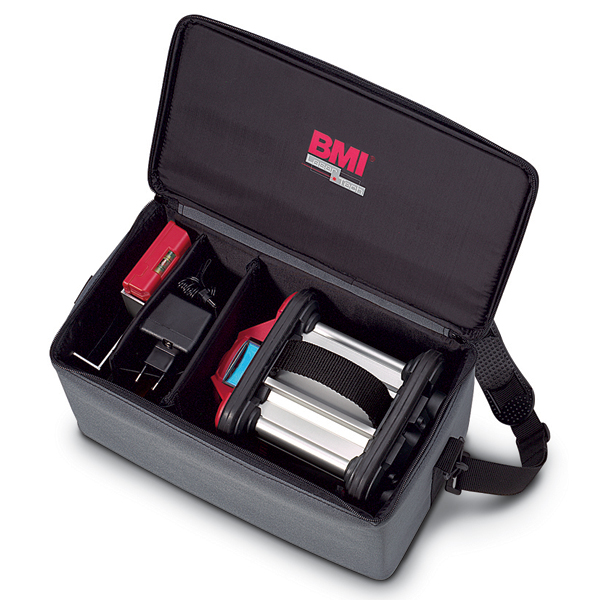

The complete set with the practical carrying bag:

NAUTILUS IPX7
Receiver with staff clamp
Charging set
Operating instruction
Accumulator set (Ni-MH) and batteries for the receiver

3-year-warranty

Original i nspection included

Quick he lp in case of defects

Technical Data Rotationslaser:

Type of laser red diode laser, wave length 635 nm
Output < 1 mw; laser class 2
Self-levelling range approx. ± 4° corresponds to ± 6%
Levelling accuracy ± 2,6 mm/30 m
Levelling time < 30 sec.
Operating range -10° C to 50° C
Range 500 m Ø with receiver
Speed 600 rotations/min.
Power supply line-powered or accumulator (Ni-MH) 4 x 1,2 V Baby, size A, LR14
Service life 50 hrs
Protective system waterproof IP 67 compliant
Tripod connection size 5/8 inch (tripod)
Dimensions ca. 170 x 170 x 220 mm
Weight 2,5 kg

Technical Data Receiver:

Range 250 m
Protective system waterproof IP 67 compliant
Power supply 2 x 1.5 Volt Mignon AA LR6
Service life according to usage
