Folding square Quadranfix

BMI

Price from ex VAT / inc. VAT

171,37 ex VAT | 205,64 inc. VAT

Product availability: within 14 working days

Combinations / dimensions Product Description

Order No.	Length without needle point	Remark	Price
714 450 M	450 mm	clock version	171,37 € ex VAT 205,64 € inc. VAT
714 600 M	600 mm	clock version	176,98 € ex VAT 212,38 € inc. VAT
714 600 D	600 mm	LCD display (without needle point)	228,21 € ex VAT 273,85 € inc. VAT

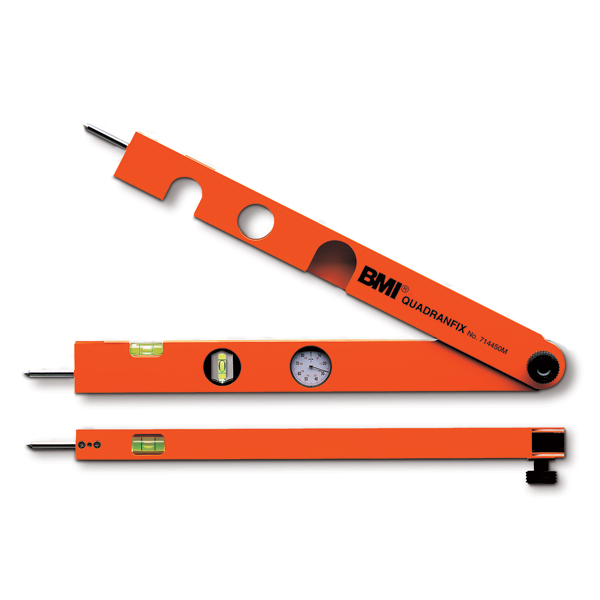

With the Quadranfix it is very easy to measure or transfer angles.

Just place and read from the clock or the LCD display.

By means of vials you can establish the horizontal or vertical line.

Solid design.

The device can also be used as a level or circle.

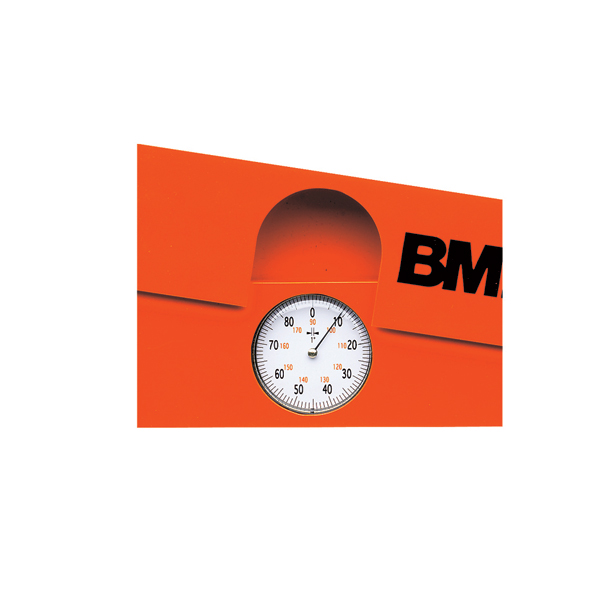

clock version The angle is directly read from the measuring clock. Double scale of 0 – 90° and 90 –180°.

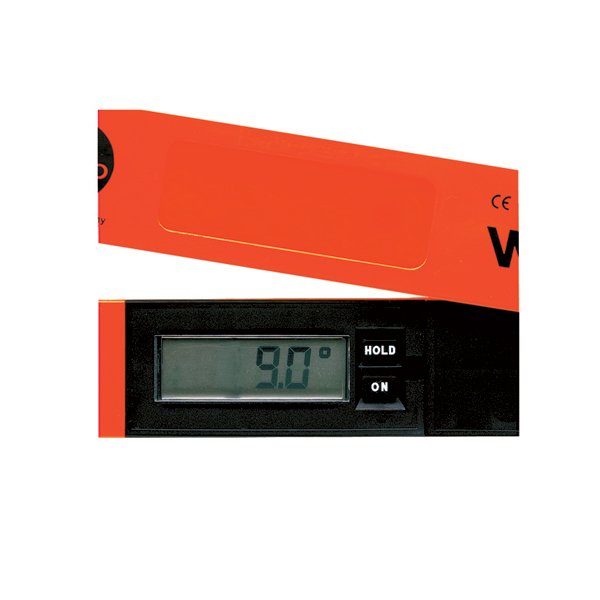

LCD display (without needle point) The angle is directly read from the LCD display. Measuring range 355°. Indicates in 0,1° steps.

Order No.	Length without needle point	Remark
714 450 M	450 mm	clock version
714 600 M	600 mm	clock version
714 600 D	600 mm	LCD display (without needle point)
