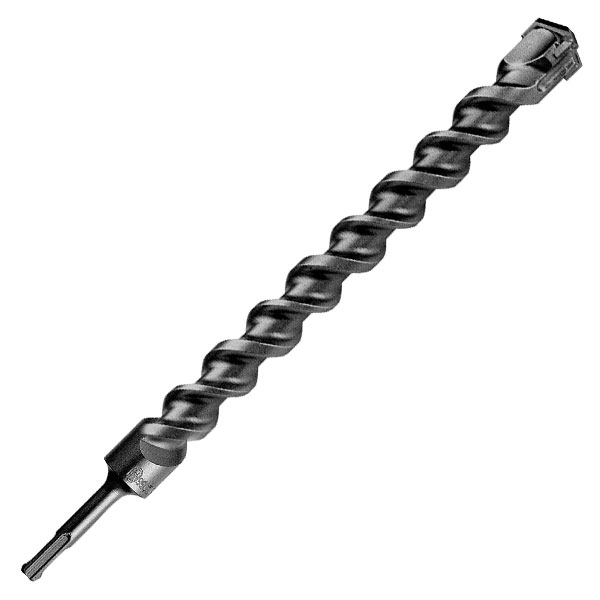

Y-CutterErgo SDS-plus Hammer Bits

Price from ex VAT / inc. VAT

15,46 ex VAT | 18,55 inc. VAT

Product availability: to order

Combinations / dimensions Product Description

Order No.	Drill diameter	Working length	Total length	Shank diameter
22522 9	Ø 16.0	200 mm	250 mm	15,46 € ex VAT 18,55 € inc. VAT
22523 6	Ø 16.0	400 mm	450 mm	24,15 € ex VAT 28,98 € inc. VAT
22524 3	Ø 18.0	250 mm	300 mm	25,00 € ex VAT 30,00 € inc. VAT
22525 0	Ø 18.0	400 mm	450 mm	26,58 € ex VAT 31,90 € inc. VAT
22526 7	Ø 20.0	250 mm	300 mm	28,82 € ex VAT 34,58 € inc. VAT
22527 4	Ø 20.0	400 mm	450 mm	30,40 € ex VAT 36,48 € inc. VAT
22528 1	Ø 22.0	400 mm	450 mm	48,35 € ex VAT 58,02 € inc. VAT
22529 8	Ø 24.0	200 mm	250 mm	43,64 € ex VAT 52,37 € inc. VAT
22530 4	Ø 24.0	400 mm	450 mm	54,45 € ex VAT 65,34 € inc. VAT
22531 1	Ø 25.0	400 mm	450 mm	57,80 € ex VAT 69,36 € inc. VAT
22532 8	Ø 28.0	200 mm	250 mm	57,50 € ex VAT 69,00 € inc. VAT
22533 5	Ø 28.0	400 mm	450 mm	66,30 € ex VAT 79,56 € inc. VAT
22534 2	Ø 30.0	400 mm	450 mm	67,40 € ex VAT 80,88 € inc. VAT

Y-CutterErgo SDS-plus Hammer Bits

THREE CUTTING EDGES – TWICE AS GOOD: UNIQUE

Serie 2518

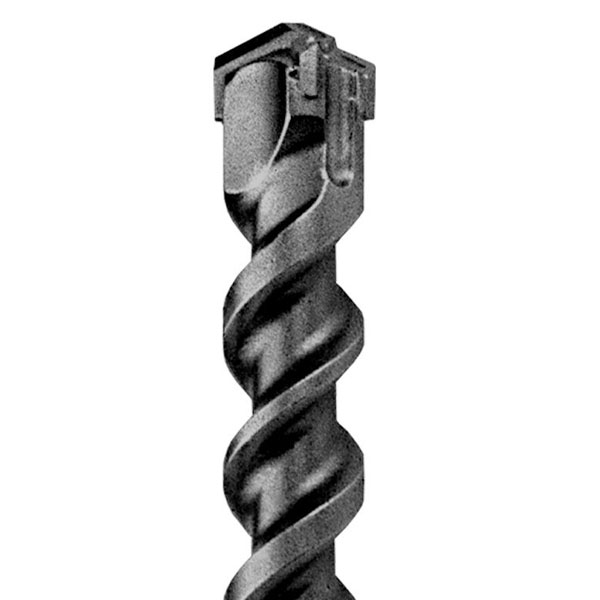

3-D cutting edge profile in Y-form for exact positioning and perfect starting
Long service life and low probability of breakage even on impact with reinforcements. thanks to the highly effective technique of hardening by blasting (HST hardening)
High drilling speed thanks to wide Twinmax spiral and customised head geometry
Optimum low-vibration drilling protects the user
Certified by the Prüfgemeinschaft Mauerbohrer (PGM) in accordance with the requirements of the Deutsches Institut für Bautechnik (DIBt) 19

Concrete

Concrete reinforcement

Gas concrete/YTONG

Granite

Sand-lime brick

Clinker

Aerated concrete

Marble

Brickwork

Stone
