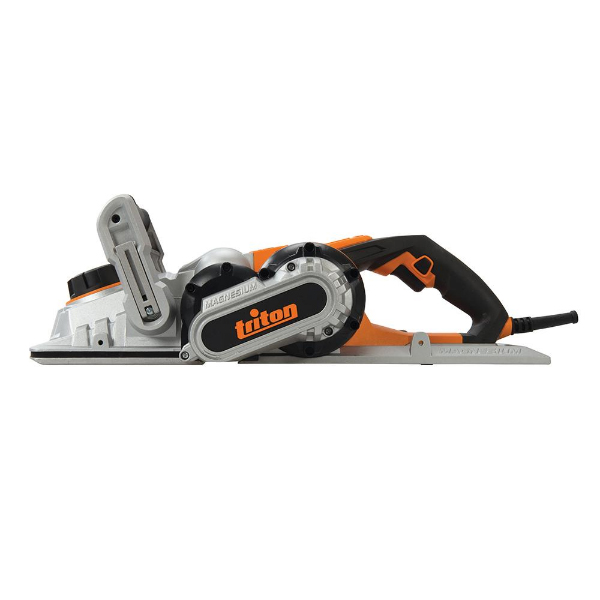

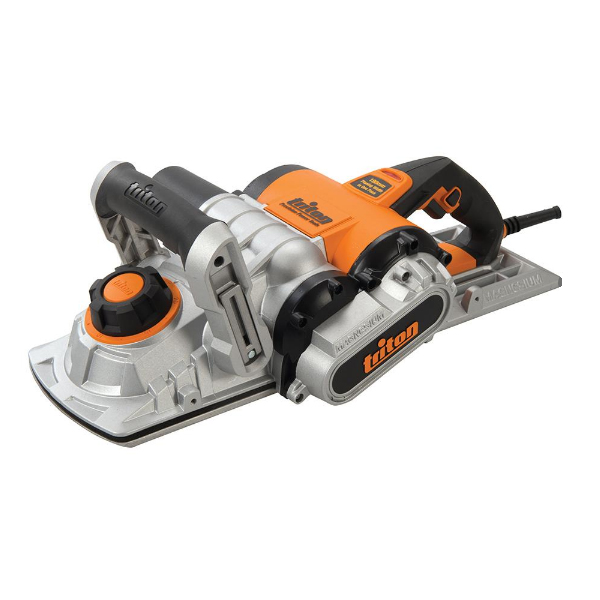

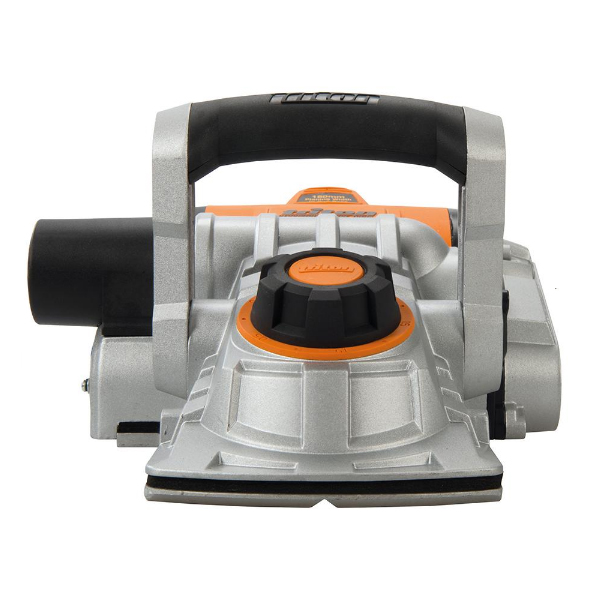

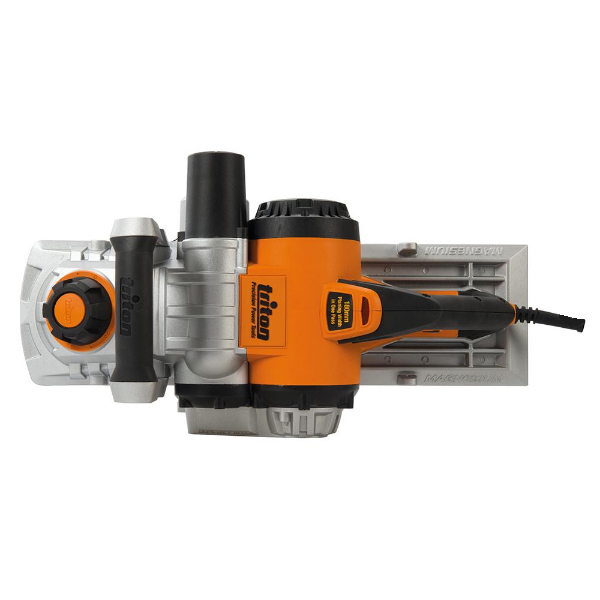

Triple Blade Planer 1500 W 180 mm TPL 180

Patented, 3-blade design and 10-position depth control knob for precise material removal. Adjustable front handle with soft grip for added comfort. Power indicator with live mains connection, ultra-wide 7" planing width. Includes wrench, dust connector, set guide fence and 3 x 65Mn 180mm blades. Cutting capacities: width 180mm, depth 2mm. No load speed 15000rpm. Weight 8.6kg.

• Powerful 1500W motor for heavy duty planing of the toughest wood surfaces
• Power-on neon indicates a live power connection
• Magnesium alloy for superior strength & durability
• Non-slip rubber over-moulded grip offers increased support, safety & control
• Fully cast base ensures flatness & increases accuracy of cut
• Low centre of gravity design for stability and control
• 3-Blade drum design for faster, smoother cuts & a superior finish
• 180mm / 7" planing width for maximum productivity
• 10-Position depth control dial sets the cut depth from 0 – 2mm / 0 - 3/32"
• 65Mn Blades are reversible for extended life
• Adjustable bail handle for additional control & safety
• Dust port for connection to a dust extraction system

Technical Specification

• Blade TypeReversible 65Mn blade
• Bore DiameterBlade bore inner - 32mm Blade bore outer - 37mm
• Depth Adjustment0.25mm Increments
• Material - Primary ConstructionAluminium
• No Load Speed15,000rpm
• Planing Depth0 - 2mm
• Planing Width180mm
• Power1500W
• Power On IndicatorYes
• Product Height170mm
• Product Length525mm
• Product Weight8.566kg
• Product Width275mm

What's in the box - 011 x Triple Blade Planer 180mm 1500W

What's in the box - 021 x Wrench

What's in the box - 031 x Dust extraction adaptor

What's in the box - 041 x Set guide fence

What's in the box - 052 x Fence securing screws

What's in the box - 061 x Instruction manual

Included Accessories

• Set guide fence
• 3 x 180mm 65Mn blades
• Wrench
• Dust connector
