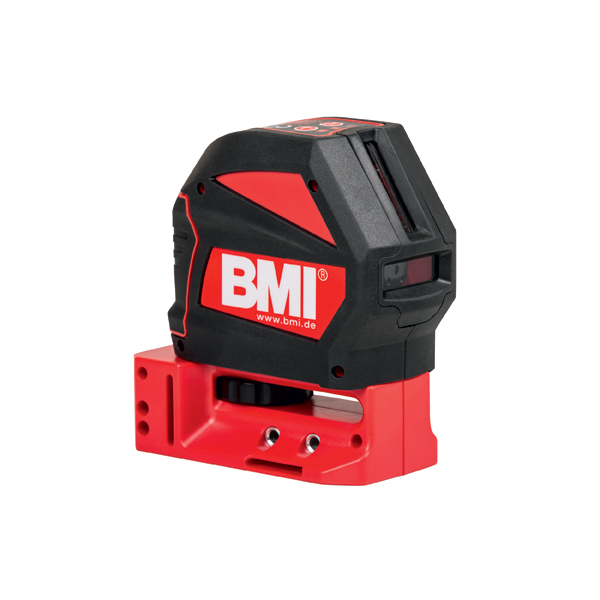

Self-levelling crossline laser autoCROSS 3

Pulsed, self-levelling crossline laser

• Self-levelling crossline-laser.
• Horizontal and vertical lines can be switched on separately.
• Can also be used with receiver by pulsed laserdiodes.

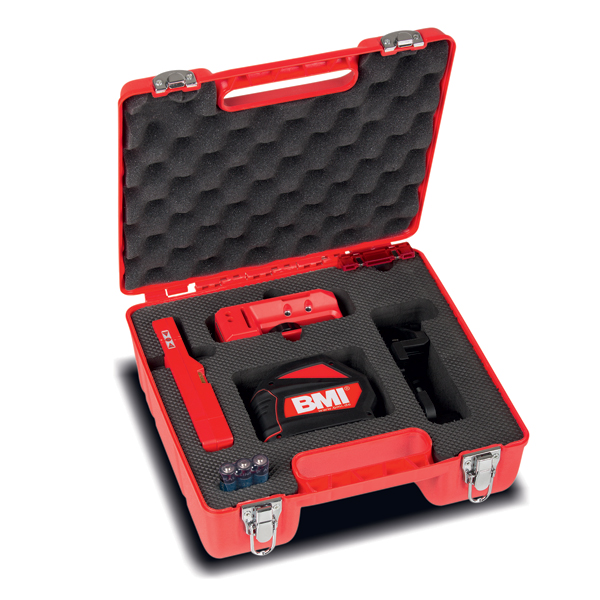

• Delivery with transport case, including batteries.

Very good visible laserlines by super-lighting power

An aperture angel of 140° vertical and 120° horizontal gives you extraordinary line lengths.

Self-levelling mechanism – eliminates set-up time and guarantees accuracy by using a magnetically subdued pendulum.

Automatic out of level sensing – by blinking laser beam.

Locked line angle – take unit out of self-levelling mode and lock line in place allowing tos et unit in any angle.

Multipurpose attachment accessory – with strong magnets, tripod connections allow to use the instrument also on tripods.

Technical Data autoCROSS 3:

• Type of laser red diode laser, wave length 635 nm
• Output laser class 2
• Levelling fully automatic (pendulum)
• Self-levelling range ± 4°
• Accuracy ± 3 mm/10 m
• Range with receiver minimum 30 m
• Power supply 3 x 1.5 V batteries Type AALR6
• Aperture angle 140° vertical, 120° horizontal
• Out of level indicator blinking laser lines
• Tripod connection size 1/4“
• Operating temperature -10° C to 50° C
• Storage temperature -20° C to 70° C
• Dimensions 120 x 95 x 62 mm
