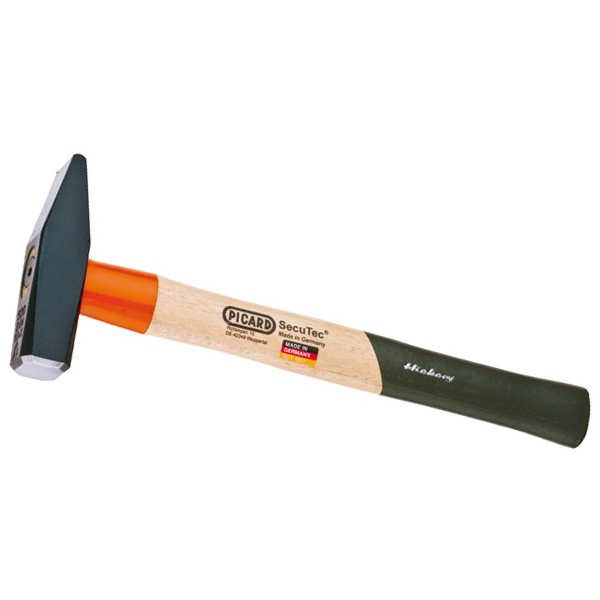

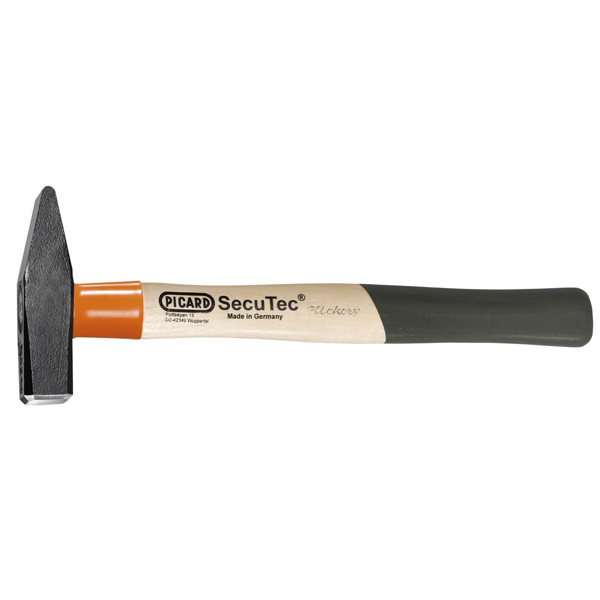

Rivetting Hammer PICARD SecuTec®, DIN 1041

• Secutec® hammers bring supreme safety to the segment of hammers featuring wooden shafts.
• Hickory wood with long fibres, a robust shaft collar and the patented wedge bolt (de-Gm 20 2012 001 634.2) provide outstanding protection by preventing hammer heads from fl ying off and shafts from breaking.
• On top of that are the ergonomic benefits of the vibration-damping hickory shaft in conjunction with exclusive steel quality and maximum safety – a typical quality product made by PICARD.

PICARD SecuTec® hammers:

• safety in the workshop, in the industrial production plant and on the building site thanks to the safety system.
• The wedge bolt is one solid component. It is dimensioned in a way that stops it from slipping through the eye of the hammer head – for greater safety in extreme applications.

MADE IN GERMANY

1_Head

Forged in the die using PICARD special steel and therefore quenched to a greater extent than that required by DIN standards. Tempered and painted black. Safety system with no protruding parts.

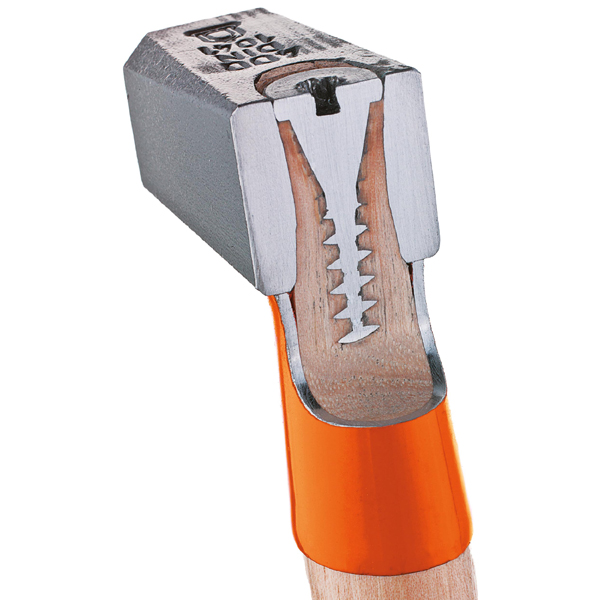

2_Wegde bolt

The ring wedge, countersunk head and bolt thread are combined in one single component. This minimises tolerances and increases stability. The diameter of the wedge bolt is larger than that of the DIN eye. This simple yet ingenious solution prevents the hammer head from flying off.

3_Peen

Finely polished and tempered. Through a combination of special steel and 150 years of production experience, the peen keeps its shape even after long and intensive use.

4_Face

Convex polished with durable bevel for safe working with no fractures, even when hitting hard edges or mishitting the hammer.

5_Protective sleeve on the shaft

Form-fitted with no protruding edges on the shaft. Made of steel, it effectively protects the shaft from mishits. The stabilisation collar fitted all the way around the underside of the hammer head also secures the head–shaft connection against the effects of leverage.

6_Hickory shaft

This can withstand three- to four-times more stress than standard ash shafts, because the longfibre wooden structure keeps the shaft in one piece even when damaged or broken. Vibration-damping, extremely bend-resistant and long-lasting.
